Introduction

In this example, we will try to solve the coupling diffusion and Allen–Cahn Fracture model.

Model

In this model, the damage phase is described by an order parameter $d$ which varies smoothly from 0 (undamaged case) to 1 (fully damaged case). Therefore, the system free energy can be read as follows:

The fracture model follows Allen–Cahn Fracture equation: $$ \begin{equation} \frac{\partial \eta}{\partial t} = -L \frac{\delta \psi}{\delta \eta} \label{eq:AC_equation} \tag{1} \end{equation} $$

The diffusion model is list as follows: $$ \begin{equation} \frac{\partial c}{\partial t} = \nabla \cdot (D \nabla c -D c\Omega \nabla{\sigma_{h}}) \label{eq:diffusion_equation} \tag{2} \end{equation} $$ where $\sigma_{h}$ is hrdyostatic stress.

The governing equaitons for this model are list below: $$ \begin{equation} \mathbf{\nabla}\cdot\boldsymbol{\sigma}=\boldsymbol{0} \label{eq:stress-equilibrium} \tag{3} \end{equation} $$

Input file

In the example/pffracture folder, there are several geo file, which can be used to generate the msh mesh file for your simulation. Before we start, you should have the mesh file.

Mesh

In this case, we'll import the mesh from gmsh, which can be done as follows:

"mesh":{
  "type":"msh2",
  "file":"rect50grs.msh",
  "savemesh":true
},

Here, you should use gmsh to generate the related msh file!

Dofs

Next, you need to define the dofs, it should be $d$, $u_{x}$, and $u_{y}$ for 2d case, and $d$, $u_{x}$, $u_{y}$, and $u_{z}$ for 3d case. The [dofs] block should looks like:

"dofs":{
  "names":["c","d","ux","uy"]
},

"dofs":{
  "names":["c","d","ux","uy","uz"]
},

Here, the sequence of your dofs name matters !!!

elmts and mates

The governings in Eq.$\eqref{eq:stress-equilibrium}$ and Eq.$\eqref{eq:damage-equation}$ can be implemented by using the following elmts:

"elements":{
  "elmt1":{
    "type":"diffusionacfracture",
    "dofs":["c","d","ux","uy"],
    "domain":["1"],
    "material":{
      "type":"diffusionacfracture",
      "parameters":{
        "stabilizer":1.0e-5,
        "L":1.0e4,
        "Gc":2.7e-3,
        "eps":0.01,
        "K":121.15,
        "G":80.77,
        "Cref":0.0,
        "D":0.1,
        "Omega": 5.65895e-02
      }
    }
  },

The parameter type=diffusionacfracture instructs AsFem to call the diffusion and Allen-Cahn fracture model. This example demonstrates a polycrystalline model where elmt1 represents the first grain, , with each grain assigned a different value of $\Omega$. The complete input file is available at examples/pffracture/rect50grsdifffrac.json.

As mentioned previously, several material parameters are essential for the calculations: the bulk modulus ($K$), shear modulus ($G$), fracture energy ($\mathcal{G}_{c}$), and the regularization length ($l$, also denoted as eps) which governs damage evolution.

boundary condition

For the tensile test, one can use the following bcs:

  "bcs":{
    "fixux":{
      "type":"dirichlet",
      "dofs":["ux"],
      "bcvalue":0.0,
      "side":["left"]
    },
    "fixuy":{
      "type":"dirichlet",
      "dofs":["uy"],
      "bcvalue":0.0,
      "side":["bottom"]
    },
    "load":{
      "type":"neumann",
      "dofs":["c"],
      "bcvalue":"-0.015",
      "side":["top","right"]
    }
  },

Run it in AsFem

Now, let's try your first finite strain fracture model in AsFem. You can create a new text file and name it as diffusionacfracture.json or whatever you like. A part of input file is as follows:

{
  "mesh":{
    "type":"msh2",
    "file":"rect50grs.msh",
    "savemesh":true
  },
  "dofs":{
    "names":["c","d","ux","uy"]
  },
  "elements":{
    "elmt1":{
      "type":"diffusionacfracture",
      "dofs":["c","d","ux","uy"],
      "domain":["1"],
      "material":{
        "type":"diffusionacfracture",
        "parameters":{
          "stabilizer":1.0e-5,
          "L":1.0e4,
          "Gc":2.7e-3,
          "eps":0.01,
          "K":121.15,
          "G":80.77,
          "Cref":0.0,
          "D":0.1,
          "Omega":   5.65895e-02
        }
      }
    },

  ...............................................................
  ...............................................................
  },

  "projection":{
    "type":"default",
    "scalarmate":["vonMises-stress","vonMises-strain","hydrostatic-stress"],
    "rank2mate":["stress"]
  },
  "linearsolver":{
    "type":"mumps",
    "preconditioner":"lu",
    "maxiters":10000,
    "restarts":2600,
    "tolerance":1.0e-26
  },
  "nlsolver":{
    "type":"newton",
    "maxiters":100,
    "abs-tolerance":7.5e-7,
    "rel-tolerance":1.0e-10,
    "s-tolerance":0.0
  },
  "output":{
    "type":"vtu",
    "interval":10
  },
  "bcs":{
    "fixux":{
      "type":"dirichlet",
      "dofs":["ux"],
      "bcvalue":0.0,
      "side":["left"]
    },
    "fixuy":{
      "type":"dirichlet",
      "dofs":["uy"],
      "bcvalue":0.0,
      "side":["bottom"]
    },
    "load":{
      "type":"neumann",
      "dofs":["c"],
      "bcvalue":"-0.015",
      "side":["top","right"]
    }
  },
  "qpoints":{
    "bulk":{
      "type":"gauss-legendre",
      "order":2
    }
  },
  "timestepping":{
    "type":"be",
    "dt0":1.0e-6,
    "dtmax":1.0e-1,
    "dtmin":1.0e-12,
    "optimize-iters":5,
    "end-time":4.8e1,
    "growth-factor":1.1,
    "cutback-factor":0.85,
    "adaptive":true
  },
  "postprocess":{
    "vonMises-stress":{
      "type":"nodalscalarmate",
      "parameters":{
        "nodeid":662,
        "scalarmate":"vonMises-stress"
      }
    },
    "uy":{
      "type":"nodalvalue",
      "dof":"uy",
      "parameters":{
        "nodeid":662
      }
    }
  },
  "job":{
    "type":"transient",
    "print":"dep"
  }
}

Due to space constraints, only element1 is displayed here. For the complete input file, please refer to examples/pffracture/rect50grsdifffrac.json.

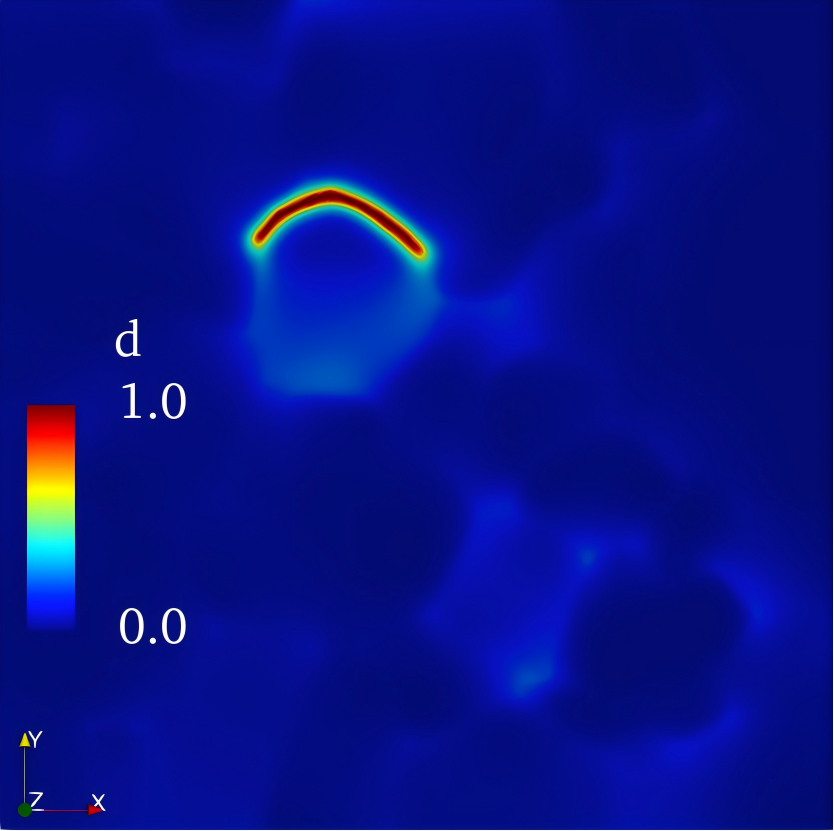

If everything goes well, you can see the following image in your Paraview:

diffusionacFracture
